# Decision Tree Regressor And Support Vector Regression With K-fold Cross Validation

Here we have implement two Data Mining Techniques, below the some basic steps which used to implement Boston House Pricing data.

### Data Mining Basics

1) Data pre-processing: Data categorical feature transformation, Data numerical feature normalization, Missing values imputation, and Cross-Validation.

Techniques

1) Decision Tree Regression

2) Support Vector Methodology

3) K-NN prediction modelling

4) K-mean clustering

5) Naïve Bayesian

### Import Libraries

```#import libraires
import pandas as pd
from sklearn.model_selection import train_test_split
from sklearn.cluster import KMeans
from sklearn.metrics import mean_absolute_error, make_scorer
import sklearn.metrics as metrics
import matplotlib.pyplot as plt
from sklearn.metrics import confusion_matrix
import seaborn as sns
import itertools
import numpy as np
import matplotlib.pyplot as plt```

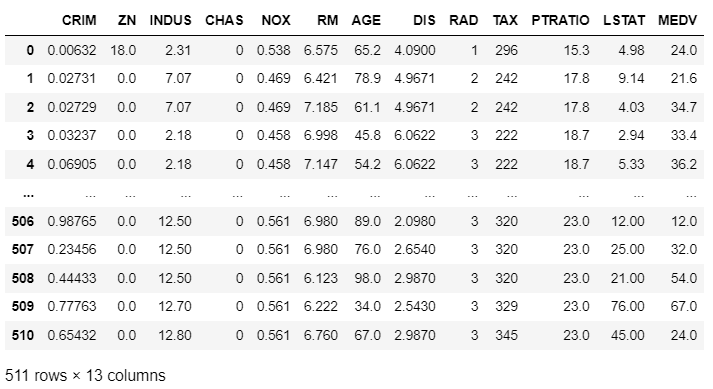

```#Read Dataset
df```

Output:

Checking Missing Values

```#Checking Null Value
#Visualize for check null value
check_null_value = df.isnull()
sns.heatmap(check_null_value,yticklabels=False,cbar=False,cmap='viridis')
```

Output:

Show Dataset Columns:

```#show data frame all columns
df.columns```

Output:

Index(['CRIM', 'ZN', 'INDUS', 'CHAS', 'NOX', 'RM', 'AGE', 'DIS', 'RAD', 'TAX', 'PTRATIO', 'LSTAT', 'MEDV'], dtype='object')

In above heatmap we an see their is two missing values in RM Now we need to remove it using median

Remove Missing Values by median

```#Remove Missing Values by Median
df['RM'].fillna(df['RM'].median(), inplace=True)```

Checking Again Missing Values

```#Now checking again Nan value
#Visualize for check null value
check_null_value = df.isnull()
sns.heatmap(check_null_value,yticklabels=False,cbar=False,cmap='viridis')```

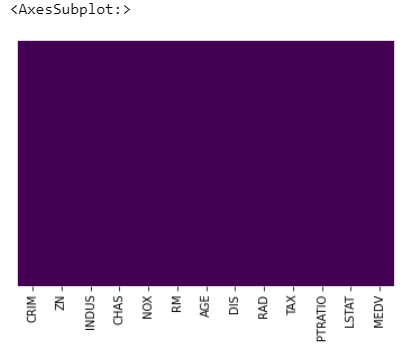

Output:

In above heat map we can she there are no missing values, all is replace by median.

```#Checking shape of dataset
df.shape```

Output:

`(511, 13)`
```#checking dataset information
df.info()```

Output:

```<class 'pandas.core.frame.DataFrame'>
RangeIndex: 511 entries, 0 to 510
Data columns (total 13 columns):
#   Column   Non-Null Count  Dtype
---  ------   --------------  -----
0   CRIM     511 non-null    float64
1   ZN       511 non-null    float64
2   INDUS    511 non-null    float64
3   CHAS     511 non-null    int64
4   NOX      511 non-null    float64
5   RM       511 non-null    float64
6   AGE      511 non-null    float64
7   DIS      511 non-null    float64
9   TAX      511 non-null    int64
10  PTRATIO  511 non-null    float64
11  LSTAT    511 non-null    float64
12  MEDV     511 non-null    float64
dtypes: float64(10), int64(3)
memory usage: 52.0 KB```

### Summary Statistics

```#checking summary of dataset
df.describe()```

Output:

### Feature Selection

```#Deviding the target and features variables
X = df.drop('MEDV', axis = 1)
y = df['MEDV']```

Normalize Features

```from sklearn import preprocessing
min_max_scaler = preprocessing.MinMaxScaler()
X_scaled = min_max_scaler.fit_transform(X)```

### Split Dataset

```#split
# Import 'train_test_split'
from sklearn.model_selection import cross_val_score
from sklearn.model_selection import train_test_split

# Shuffle and split the data into training and testing subsets
X_train, X_test, y_train, y_test = train_test_split(X_scaled, y, test_size=0.2, random_state=2)

# Success
print("Training and testing split was successful.")```

### K-fold Cross Validation

```from sklearn.model_selection import cross_val_score
from sklearn.model_selection import KFold
import numpy as np
kf = KFold(n_splits=10)```

### SVR(Support Vector Regression)

```from sklearn.svm import SVR
svr_rbf = SVR(kernel='rbf', C=1e3, gamma=0.1)
svr_rbf.fit( X_train, y_train)
scores = cross_val_score(svr_rbf, X_train, y_train, cv=kf)
print("Accuracy: %0.2f (+/- %0.2f)" % (scores.mean(), scores.std()))```

Output:

`Accuracy: 0.77 (+/- 0.12)`

### Decision Tree Regressor

```from sklearn.tree import DecisionTreeRegressor
desc_tr = DecisionTreeRegressor(max_depth=3)
desc_tr.fit(X_train, y_train)
scores = cross_val_score(desc_tr, X_train, y_train, cv=kf)
print("Accuracy: %0.2f (+/- %0.2f)" % (scores.mean(), scores.std()))```

Output:

`Accuracy: 0.62 (+/- 0.12)`

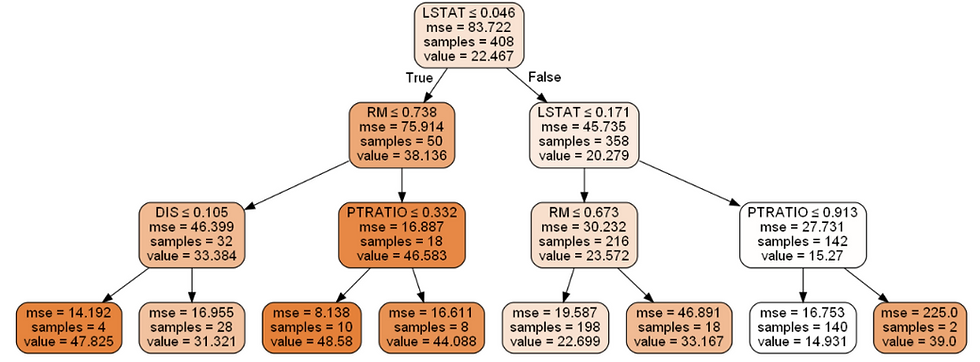

### Draw the Graph

```!pip install graphviz
!pip install pydotplus```
```import six
import sys
sys.modules['sklearn.externals.six'] = six```
```#draw tree
from sklearn.externals.six import StringIO
from IPython.display import Image
from sklearn.tree import export_graphviz
import pydotplus
feature_cols = ['CRIM', 'ZN', 'INDUS', 'CHAS', 'NOX', 'RM', 'AGE', 'DIS', 'RAD', 'TAX', 'PTRATIO', 'LSTAT']
dot_data = StringIO()
export_graphviz(desc_tr, out_file=dot_data,
filled=True, rounded=True,
special_characters=True, feature_names = feature_cols,class_names=['0','1'])
graph = pydotplus.graph_from_dot_data(dot_data.getvalue())
graph.write_png('boston.png')
Image(graph.create_png())```

Output:

### KNN

```from sklearn.neighbors import KNeighborsRegressor
knn = KNeighborsRegressor(n_neighbors=3)
knn.fit( X_train, y_train)
scores = cross_val_score(knn, X_train, y_train, cv=kf)
print("KNN Accuracy: %0.2f (+/- %0.2f)" % (scores.mean(), scores.std()))```

Output:

`KNN Accuracy: 0.64 (+/- 0.12`
