1.Business/Real-world Problem 1.1. What is Malware? The term malware is a contraction of malicious software. Put simply, malware is any piece of software that was written with the intent of doing harm to data, devices or to people. Source: https://www.avg.com/en/signal/what-is-malware 1.2. Problem Statement In the past few years, the malware industry has grown very rapidly that, the syndicates invest heavily in technologies to evade traditional protection, forcing the anti-malware groups/communities to build more robust softwares to detect and terminate these attacks. The major part of protecting a computer system from a malware attack is to identify whether a given piece of file/software is a malware. 1.3 Source/Useful Links Microsoft has been very active in building anti-malware products over the years and it runs it’s anti-malware utilities over 150 million computers around the world. This generates tens of millions of daily data points to be analyzed as potential malware. In order to be effective in analyzing and classifying such large amounts of data, we need to be able to group them into groups and identify their respective families. This dataset provided by Microsoft contains about 9 classes of malware. , Source: https://www.kaggle.com/c/malware-classification 1.4. Real-world/Business objectives and constraints.

  1. Minimize multi-class error.

  2. Multi-class probability estimates.

  3. Malware detection should not take hours and block the user's computer. It should fininsh in a few seconds or a minute.

2. Machine Learning Problem 2.1. Data 2.1.1. Data Overview Source : https://www.kaggle.com/c/malware-classification/data For every malware, we have two files

  1. .asm file (read more: https://www.reviversoft.com/file-extensions/asm)

  2. .bytes file (the raw data contains the hexadecimal representation of the file's binary content, without the PE header)

Total train dataset consist of 200GB data out of which 50Gb of data is .bytes files and 150GB of data is .asm files:

Lots of Data for a single-box/computer. There are total 10,868 .bytes files and 10,868 asm files total 21,736 files There are 9 types of malwares (9 classes) in our give data Types of Malware:

  1. Ramnit

  2. Lollipop

  3. Kelihos_ver3

  4. Vundo

  5. Simda

  6. Tracur

  7. Kelihos_ver1

  8. Obfuscator.ACY

  9. Gatak

2.1.2. Example Data Point




















...

...


2.2. Mapping the real-world problem to an ML problem

2.2.1. Type of Machine Learning Problem

There are nine different classes of malware that we need to classify a given a data point => Multi class classification problem

2.2.2. Performance Metric

Source: https://www.kaggle.com/c/malware-classification#evaluation Metric(s):

  • Multi class log-loss

  • Confusion matrix


2.2.3. Machine Learing Objectives and Constraints

Objective: Predict the probability of each data-point belonging to each of the nine classes.

Constraints: * Class probabilities are needed. * Penalize the errors in class probabilites => Metric is Log-loss. * Some Latency constraints.

2.3. Train and Test Dataset Split the dataset randomly into three parts train, cross validation and test with 64%,16%, 20% of data respectively

2.4. Useful blogs, videos and reference papers http://blog.kaggle.com/2015/05/26/microsoft-malware-winners-interview-1st-place-no-to-overfitting/ https://arxiv.org/pdf/1511.04317.pdf First place solution in Kaggle competition: https://www.youtube.com/watch?v=VLQTRlLGz5Y https://github.com/dchad/malware-detection http://vizsec.org/files/2011/Nataraj.pdf https://www.dropbox.com/sh/gfqzv0ckgs4l1bf/AAB6EelnEjvvuQg2nu_pIB6ua?dl=0 " Cross validation is more trustworthy than domain knowledge."



3. Exploratory Data Analysis

import necessary packages

import warnings
warnings.filterwarnings("ignore")
import shutil
import os
import pandas as pd
import matplotlib
matplotlib.use(u'nbAgg')
import matplotlib.pyplot as plt
import seaborn as sns
import numpy as np
import pickle
from sklearn.manifold import TSNE
from sklearn import preprocessing
import pandas as pd
from multiprocessing import Process# this is used for multithreading
import multiprocessing
import codecs# this is used for file operations
import random as r
from xgboost import XGBClassifier
from sklearn.model_selection import RandomizedSearchCV
from sklearn.tree import DecisionTreeClassifier
from sklearn.calibration import CalibratedClassifierCV
from sklearn.neighbors import KNeighborsClassifier
from sklearn.metrics import log_loss
from sklearn.metrics import confusion_matrix
from sklearn.model_selection import train_test_split
from sklearn.linear_model import LogisticRegression
from sklearn.ensemble import RandomForestClassifier
#separating byte files and asm files
source = 'train'
destination_1 = 'byteFiles'
destination_2 = 'asmFiles'

# we will check if the folder 'byteFiles' exists if it not there we will create a folder with the same name
if not os.path.isdir(destination_1):
    os.makedirs(destination_1)
if not os.path.isdir(destination_2):
    os.makedirs(destination_2)

# if we have folder called 'train' (train folder contains both .asm files and .bytes files) we will rename it 'asmFiles'
# for every file that we have in our 'asmFiles' directory we check if it is ending with .bytes, if yes we will move it to
# 'byteFiles' folder

# so by the end of this snippet we will separate all the .byte files and .asm files
if os.path.isdir(source):
    data_files = os.listdir(source)
    for file in data_files:
        print(file)
        if (file.endswith("bytes")):
            shutil.move(source+'\\'+file,destination_1)
        if (file.endswith("asm")):
            shutil.move(source+'\\'+file,destination_2)


3.1. Distribution of malware classes in whole data set

Y=pd.read_csv("trainLabels.csv")
total = len(Y)*1.
ax=sns.countplot(x="Class", data=Y)
for p in ax.patches:
        ax.annotate('{:.1f}%'.format(100*p.get_height()/total), (p.get_x()+0.1, p.get_height()+5))

#put 11 ticks (therefore 10 steps), from 0 to the total number of rows in the dataframe
ax.yaxis.set_ticks(np.linspace(0, total, 11))

#adjust the ticklabel to the desired format, without changing the position of the ticks.
ax.set_yticklabels(map('{:.1f}%'.format, 100*ax.yaxis.get_majorticklocs()/total))
plt.show()

output:














3.2. Feature extraction 3.2.1 File size of byte files as a feature

#file sizes of byte files
files=os.listdir('byteFiles')
filenames=Y['Id'].tolist()
class_y=Y['Class'].tolist()
class_bytes=[]
sizebytes=[]
fnames=[]
for file in files:
    # print(os.stat('byteFiles/0A32eTdBKayjCWhZqDOQ.txt'))
    # os.stat_result(st_mode=33206, st_ino=1125899906874507, st_dev=3561571700, st_nlink=1, st_uid=0, st_gid=0,
    # st_size=3680109, st_atime=1519638522, st_mtime=1519638522, st_ctime=1519638522)
    # read more about os.stat: here https://www.tutorialspoint.com/python/os_stat.htm
    statinfo=os.stat('byteFiles/'+file)
    # split the file name at '.' and take the first part of it i.e the file name
    file=file.split('.')[0]
    if any(file == filename for filename in filenames):
        i=filenames.index(file)
        class_bytes.append(class_y[i])
        # converting into Mb's
        sizebytes.append(statinfo.st_size/(1024.0*1024.0))
        fnames.append(file)
data_size_byte=pd.DataFrame({'ID':fnames,'size':sizebytes,'Class':class_bytes})
print (data_size_byte.head())

output:

                     ID      size  Class
0  01azqd4InC7m9JpocGv5  4.234863      9
1  01IsoiSMh5gxyDYTl4CB  5.538818      2
2  01jsnpXSAlgw6aPeDxrU  3.887939      9
3  01kcPWA9K2BOxQeS5Rju  0.574219      1
4  01SuzwMJEIXsK7A8dQbl  0.370850      8

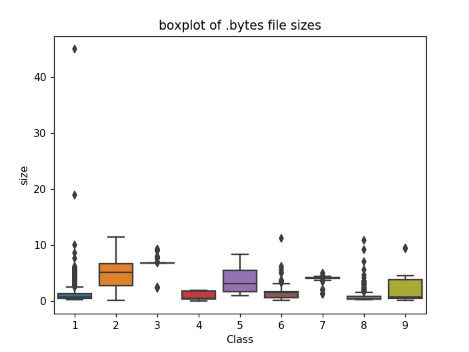

3.2.2 box plots of file size (.byte files) feature

#boxplot of byte files
ax = sns.boxplot(x="Class", y="size", data=data_size_byte)
plt.title("boxplot of .bytes file sizes")
plt.show()

output:













3.2.3 feature extraction from byte files


#removal of addres from byte files
# contents of .byte files
# ----------------
#00401000 56 8D 44 24 08 50 8B F1 E8 1C 1B 00 00 C7 06 08
#-------------------
#we remove the starting address 00401000

files = os.listdir('byteFiles')
filenames=[]
array=[]
for file in files:
    if(file.endswith("bytes")):
        file=file.split('.')[0]
        text_file = open('byteFiles/'+file+".txt", 'w+')
        with open('byteFiles/'+file+".bytes","r") as fp:
            lines=""
            for line in fp:
                a=line.rstrip().split(" ")[1:]
                b=' '.join(a)
                b=b+"\n"
                text_file.write(b)
            fp.close()
            os.remove('byteFiles/'+file+".bytes")
        text_file.close()

files = os.listdir('byteFiles')
filenames2=[]
feature_matrix = np.zeros((len(files),257),dtype=int)
k=0


#program to convert into bag of words of bytefiles
#this is custom-built bag of words this is unigram bag of words
byte_feature_file=open('result.csv','w+')
byte_feature_file.write("ID,0,1,2,3,4,5,6,7,8,9,0a,0b,0c,0d,0e,0f,10,11,12,13,14,15,16,17,18,19,1a,1b,1c,1d,1e,1f,20,21,22,23,24,25,26,27,28,29,2a,2b,2c,2d,2e,2f,30,31,32,33,34,35,36,37,38,39,3a,3b,3c,3d,3e,3f,40,41,42,43,44,45,46,47,48,49,4a,4b,4c,4d,4e,4f,50,51,52,53,54,55,56,57,58,59,5a,5b,5c,5d,5e,5f,60,61,62,63,64,65,66,67,68,69,6a,6b,6c,6d,6e,6f,70,71,72,73,74,75,76,77,78,79,7a,7b,7c,7d,7e,7f,80,81,82,83,84,85,86,87,88,89,8a,8b,8c,8d,8e,8f,90,91,92,93,94,95,96,97,98,99,9a,9b,9c,9d,9e,9f,a0,a1,a2,a3,a4,a5,a6,a7,a8,a9,aa,ab,ac,ad,ae,af,b0,b1,b2,b3,b4,b5,b6,b7,b8,b9,ba,bb,bc,bd,be,bf,c0,c1,c2,c3,c4,c5,c6,c7,c8,c9,ca,cb,cc,cd,ce,cf,d0,d1,d2,d3,d4,d5,d6,d7,d8,d9,da,db,dc,dd,de,df,e0,e1,e2,e3,e4,e5,e6,e7,e8,e9,ea,eb,ec,ed,ee,ef,f0,f1,f2,f3,f4,f5,f6,f7,f8,f9,fa,fb,fc,fd,fe,ff,??")
byte_feature_file.write("\n")
for file in files:
    filenames2.append(file)
    byte_feature_file.write(file+",")
    if(file.endswith("txt")):
        with open('byteFiles/'+file,"r") as byte_flie:
            for lines in byte_flie:
                line=lines.rstrip().split(" ")
                for hex_code in line:
                    if hex_code=='??':
                        feature_matrix[k][256]+=1
                    else:
                        feature_matrix[k][int(hex_code,16)]+=1
        byte_flie.close()
    for i, row in enumerate(feature_matrix[k]):
        if i!=len(feature_matrix[k])-1:
            byte_feature_file.write(str(row)+",")
        else:
            byte_feature_file.write(str(row))
    byte_feature_file.write("\n")

    k += 1

byte_feature_file.close()

byte_features=pd.read_csv("result.csv")
byte_features['ID']  = byte_features['ID'].str.split('.').str[0]
byte_features.head(2)

output:



data_size_byte.head(2)

output:






byte_features_with_size = byte_features.merge(data_size_byte, on='ID')
byte_features_with_size.to_csv("result_with_size.csv")
byte_features_with_size.head(2)

output:


# https://stackoverflow.com/a/29651514
def normalize(df):
    result1 = df.copy()
    for feature_name in df.columns:
        if (str(feature_name) != str('ID') and str(feature_name)!=str('Class')):
            max_value = df[feature_name].max()
            min_value = df[feature_name].min()
            result1[feature_name] = (df[feature_name] - min_value) / (max_value - min_value)
    return result1
result = normalize(byte_features_with_size)

result.head(2)
data_y = result['Class']
result.head()

output:



3.2.4 Multivariate Analysis

#multivariate analysis on byte files
#this is with perplexity 50
xtsne=TSNE(perplexity=50)
results=xtsne.fit_transform(result.drop(['ID','Class'], axis=1))
vis_x = results[:, 0]
vis_y = results[:, 1]
plt.scatter(vis_x, vis_y, c=data_y, cmap=plt.cm.get_cmap("jet", 9))
plt.colorbar(ticks=range(10))
plt.clim(0.5, 9)
plt.show()

output:














#this is with perplexity 30
xtsne=TSNE(perplexity=30)
results=xtsne.fit_transform(result.drop(['ID','Class'], axis=1))
vis_x = results[:, 0]
vis_y = results[:, 1]
plt.scatter(vis_x, vis_y, c=data_y, cmap=plt.cm.get_cmap("jet", 9))
plt.colorbar(ticks=range(10))
plt.clim(0.5, 9)
plt.show()

output:
















Train Test split

data_y = result['Class']
# split the data into test and train by maintaining same distribution of output varaible 'y_true' [stratify=y_true]
X_train,
