Development of a centralized healthcare database system to manage patients, healthcare providers, appointments, medical records, and notifications | Realcode4you

1. Introduction

This project addresses the development of a centralized healthcare database system to manage patients, healthcare providers, appointments, medical records, and notifications. The goal is to streamline operations, improve data accessibility, and ensure efficient management of healthcare services. A cloud-based electronic health record (EMR) system has the potential to change how paper-based health care system process by allowing healthcare to use information effectively and improving the quality of care to patients (Voset al., 2020). The system stores data such as patient details, demographics, this system provides structured data storage, better coordination between providers and patients, improved tracking of appointments and medical records, and actionable insights through custom SQL queries for reporting and decision-making.

2. Glossary of Terms

Term	Definition
Patient	An individual receiving care from a healthcare provider.
Healthcare Provider	A doctor, nurse, or medical specialist offering services to patients.
Appointment	A scheduled meeting between a patient and a healthcare provider.
Medical Record	A digital document that contains the diagnosis, prescription, and treatment.
Notification	A message or alert sent to a patient, typically about appointments or updates.
Specialty	The area of medical expertise a healthcare provider practices in.

3. Project Scope

This system is designed to store and manage core healthcare data entities such as patients, healthcare providers, appointments, medical records, and notifications. It provides capabilities for querying data, generating reports, and ensuring consistent and accurate healthcare data management.

3.1 Functional Requirements

3.1.1 The system shall allow the retrieval of patients based on location (e.g., city).

3.1.2 The system shall maintain a record of all appointments and allow appointment counts.

3.1.3 The system shall display all healthcare providers ordered by their specialty.

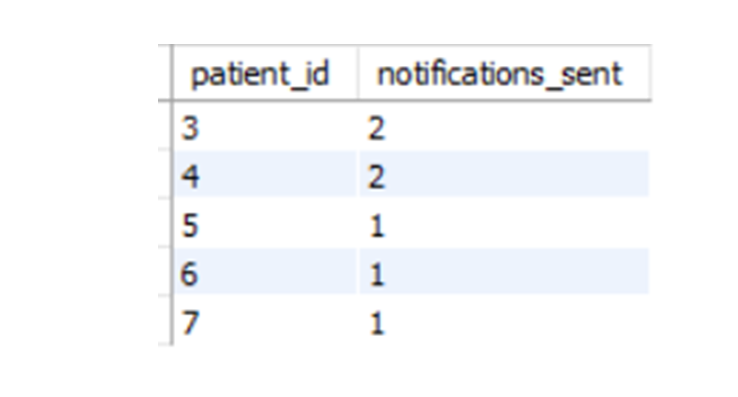

3.1.4 The system shall track and count notifications sent to each patient.

3.1.5 The system shall join appointment data with corresponding patient and provider details.

3.1.6 The system shall identify providers who authored more than 1 medical record

3.2 Non-functional Requirements

• The system must ensure data accuracy and consistency across entities.

• The system must support SQL-based querying for analytical reporting.

• The system must be scalable to accommodate an increasing number of records.

• The system must maintain relational integrity through foreign key constraints.

3.3 Out of Scope Items

• The system does not include a user interface or front-end application.

• Real-time appointment scheduling or patient-provider interaction modules are not included.

• The system does not perform automated medication suggestions or clinical decision support.

4. Assumptions

4.1 Each patient has a unique patient_id and a single address stored as a text field.

4.2 Each provider is assumed to operate independently and can be linked to multiple

appointments or medical records.

4.3 Appointment data is stored with date, time, status, and is always linked to a valid

patient and provider.

4.4 Medication details are part of the medical record and not maintained in a separate

medication master table.

4.5 Notifications are logged as entries in the system but not tracked for content, just

quantity.

Q1) Draw an ERD for the designed database (15 points) All entities (with meaningful names)

1. Admin administrators who manage users and generate reports

Attributes:

• admin_id (Primary Key) – Admin ID PK to identify unique admin record

• admin_name – Admin  Name

• email – Admin Emai ID

2. Patient: Holds information about registered patients

Attributes:

• patient_id (Primary Key) – Patient ID PK to identify unique patient record

• patient_name – Patient Name

• email – Patient Email ID

• phone – Patient Phone Number

• address – Patient Address

3. HealthcareProvider: Doctors or nurses who provide healthcare services

Attributes:

• provider_id (Primary Key) -  Provider ID PK to identify unique Provider record

• healthcare_name – HealthCare Provider Name

• specialty – Health Care Provider Speciality

• availability – Health Care Provider Availability

4. Appointment Stores appointment details between patients and providers

Attributes:

• appointment_id (Primary Key) - Appointment ID PK to identify unique Appointments record

• patient_id (Foreign Key) – Patient_id FK taking reference from Patient table

• provider_id (Foreign Key) – Provider_id FK taking reference from Provider

• appointment_date – Appointment Date

• appointment_time – Appointment Time

• appointment_status (e.g., scheduled, cancelled, completed) – Appointment Status

5. MedicalRecord: Contains patients' medical histories (weak because it depends on patient)

Attributes:

• record_id (Primary Key) - Record ID PK to identify unique Medical record

• patient_id (Foreign Key, owner of the weak entity) – Patient_id FK taking reference from Patient table

• provider_id (Foreign Key – who created/updated the record) - Provider_id FK taking reference from Provider

• diagnosis – Diagnosis of Patient

• medication – Medication for Patient

• treatment_notes – Any Treatment notes for Patient

• last_updated – Last Updated Timestamp of Record

6. Report: Represents reports generated by admins

Attributes:

• report_id (Primary Key) – Report_id PK to identify unique Reports record

• admin_id (Foreign Key) – Admin_id FK taking reference from Admin table

• report_type (e.g., usage, performance) – Type of Report Generated

• generated_on (Date) – Date of Report Generation

7. Notification Stores messages sent to patients

Attributes:

• notification_id (Primary Key) - Notification_id PK to identify unique notifications

• patient_id (Foreign Key) - Patient_id FK taking reference from Patient table

• Appointment_id ( Foreign Key) – Appointment_id taking reference from Appointment table

• message – Notification Message content

• notification_time (Date) – Time of Notification

Entity	Type	Explanation
Strong Entities	Admin, Patient, HealthcareProvider, Appointment, Report, Notification, UserAccount	These can exist independently
Weak Entity	MedicalRecord	Depends on Patient for identification and existence

• Each entity is fully normalized to 3NF (no partial or transitive dependencies).

• The MedicalRecord is modeled as a weak entity because it depends on the existence of a Patient.

• Relationships follow appropriate min–max cardinality for real-world modeling (e.g., a patient can have many appointments).

• Foreign keys ensure referential integrity between related entities.

• All relationships are enforced through foreign keys, ensuring that data across tables remains valid and synchronized (e.g., Patient.admin_id references Admin.admin_id )

RELATIONSHIPS

Relationship	Explanation
Admin (1,1) <-> Report (0,N)	One admin can generate multiple reports
Admin (1,1) <-> Patient (0,N)	One admin manages multiple patients
Admin (1,1) <-> HealthcareProvider (0,N)	One admin manages multiple providers
Patient (1,1) <-> Appointment (0,N)	One patient can have multiple appointments
HealthcareProvider (1,1) <-> Appointment (0,N)	One provider can attend multiple appointments
Patient (1,1) <-> MedicalRecord (1,N)	One patient must have at least one medical record (weak entity)
HealthcareProvider (1,1) <-> MedicalRecord (0,N)	One provider can update multiple medical records
Notification (0,N) <-> Appointment (0,1)	A notification may relate to zero or one appointment
Patient (1,1) <-> Notification (0,N)	One patient can receive multiple notifications

2. Create database and populate data (15 points)  Based on your ERD, create the physical database using SQL

DATABASE CREATION

-- =========================

-- Database: FineHealth

-- =========================

CREATE DATABASE FineHealth;

USE FineHealth;

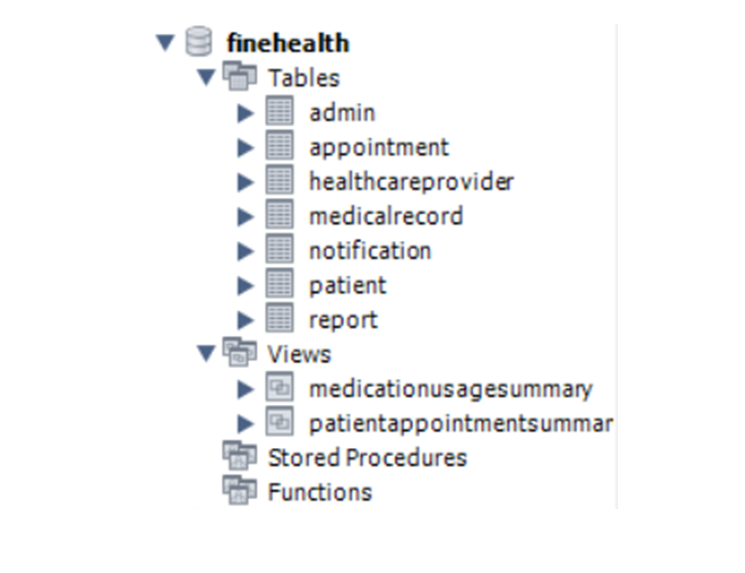

TABLE CREATION

-- =========================

-- Table: Admin

-- Stores admin user details

-- =========================

CREATE TABLE Admin (

    admin_id INT PRIMARY KEY,

    admin_name VARCHAR (100) NOT NULL,

    email VARCHAR (100) NOT NULL UNIQUE

);

INSERT INTO Admin (admin_id, admin_name, email) VALUES

(1, 'John Admin', 'john@finehealth.com'),

(2, 'Lisa Clark', 'lisa@finehealth.com');

-- =========================

-- Table: Patient

-- Stores patient personal and contact details, linked to Admin

-- =========================

CREATE TABLE Patient (

    patient_id INT PRIMARY KEY,

    patient_name VARCHAR (100) NOT NULL,

    email VARCHAR (100) UNIQUE NOT NULL,

    phone VARCHAR (20),

    address VARCHAR (255),

    admin_id INT,

    FOREIGN KEY (admin_id) REFERENCES Admin(admin_id));

INSERT INTO Patient (patient_id, patient_name, email, phone, address, admin_id) VALUES

(3, 'Peter Parker', 'peter@finehealth.com', '1234567890', 'Queens, NY', 1),

(4, 'Susan Storm', 'susan@finehealth.com', '2345678901', 'Brooklyn, NY', 1),

(5, 'Tony Stark', 'tony@finehealth.com', '3456789012', 'Manhattan, NY', 1),

(6, 'Bruce Banner', 'bruce@finehealth.com', '4567890123', 'Harlem, NY', 2),

(7, 'Natasha Romanoff', 'natasha@finehealth.com', '5678901234', 'Bronx, NY', 2);

-- =========================

-- Table: HealthcareProvider

-- Stores doctor/nurse details and specialization, linked to Admin

-- =========================

CREATE TABLE HealthcareProvider (

    provider_id INT PRIMARY KEY,

    healthcare_name VARCHAR (100) NOT NULL,

    specialty VARCHAR (100),

    availability VARCHAR (100),

    admin_id INT,

    FOREIGN KEY (admin_id) REFERENCES Admin(admin_id)

);

INSERT INTO HealthcareProvider (provider_id, healthcare_name, specialty, availability, admin_id) VALUES

(8, 'Dr. Smith', 'Cardiology', 'Mon-Fri 9am-5pm', 1),

(9, 'Nurse Anna', 'Pediatrics', 'Tue-Thu 10am-4pm', 1),

(10, 'Dr. Williams', 'Dermatology', 'Wed-Fri 1pm-6pm', 2),

(11, 'Dr. Brown', 'Neurology', 'Mon-Wed 8am-12pm', 2),

(12, 'Nurse Taylor', 'General Medicine', 'Mon-Fri 10am-3pm', 2);

-- =========================

-- Table: Appointment

-- Stores appointment bookings between patients and providers

-- =========================

CREATE TABLE Appointment (

    appointment_id INT PRIMARY KEY AUTO_INCREMENT,

    patient_id INT NOT NULL,

    provider_id INT NOT NULL,

    appointment_date DATE NOT NULL,

    appointment_time TIME NOT NULL,

    appointment_status VARCHAR (50),

    FOREIGN KEY (patient_id) REFERENCES Patient(patient_id),

    FOREIGN KEY (provider_id) REFERENCES HealthcareProvider(provider_id)

);

INSERT INTO Appointment (patient_id, provider_id, appointment_date, appointment_time, appointment_status) VALUES

(3, 8, '2025-05-10', '10:30:00', 'Scheduled'),

(4, 9, '2025-05-15', '14:00:00', 'Scheduled'),

(5, 10, '2025-05-04', '11:00:00', 'Completed'),

(6, 11, '2025-05-13', '09:00:00', 'Cancelled'),

(7, 12, '2025-05-14', '12:00:00', 'Scheduled');

-- =========================

-- Table: MedicalRecord

-- Records medical history, linked to patient and optionally Provider

-- =========================

CREATE TABLE MedicalRecord (

    record_id INT PRIMARY KEY AUTO_INCREMENT,

    patient_id INT NOT NULL,

    provider_id INT,

    diagnosis TEXT,

    medication TEXT,

    treatment_notes TEXT,

    last_updated DATE,

    FOREIGN KEY (patient_id) REFERENCES Patient(patient_id),

    FOREIGN KEY (provider_id) REFERENCES HealthcareProvider(provider_id)

);

INSERT INTO MedicalRecord (patient_id, provider_id, diagnosis, medication, treatment_notes, last_updated) VALUES

(3, 8, 'Hypertension', 'Lisinopril', 'Regular checkup', '2025-04-01'),

(3, 9, 'Cold', 'Paracetamol', 'Advised rest', '2025-04-25'),

(4, 10, 'Migraine', 'Ibuprofen', 'Monitor symptoms', '2025-05-02'),

(5, 11, 'Anxiety', 'Sertraline', 'Follow-up monthly', '2025-05-03'),

(6, 12, 'Diabetes', 'Metformin', 'Diet + medication', '2025-05-04');

-- =========================

-- Table: Report

-- Generated by Admins for audit or analysis purposes

-- =========================

CREATE TABLE Report (

    report_id INT PRIMARY KEY AUTO_INCREMENT,

    admin_id INT NOT NULL,

    report_type VARCHAR (50),

    generated_on DATE,

    FOREIGN KEY (admin_id) REFERENCES Admin(admin_id)

);

INSERT INTO Report (admin_id, report_type, generated_on) VALUES

(1, 'System Usage', '2025-05-05'),

(1, 'User Activity', '2025-05-06'),

(2, 'Daily Summary', '2025-05-06'),

(2, 'Error Logs', '2025-05-07'),

(1, 'Security Audit', '2025-05-07');

-- =========================

-- Table: Notification

-- Sent to Patients; can be linked to an appointment or general

-- =========================

CREATE TABLE Notification (

    notification_id INT PRIMARY KEY AUTO_INCREMENT,

    patient_id INT NOT NULL,

    appointment_id INT,

    message TEXT NOT NULL,

    notification_time DATETIME NOT NULL,

    FOREIGN KEY (patient_id) REFERENCES Patient(patient_id),

    FOREIGN KEY (appointment_id) REFERENCES Appointment(appointment_id)

);

INSERT INTO Notification (patient_id, appointment_id, message, notification_time) VALUES

(3, 1, 'Your appointment is scheduled for May 10 at 10:30 AM', NOW()),

(4, 2, 'Reminder: appointment on May 15 at 2:00 PM', NOW()),

(3, NULL, 'Your lab results are now available', NOW()),

(5, 3, 'Appointment has been completed', NOW()),

(6, 4, 'Appointment has been cancelled', NOW()),

(7, 5, 'Reminder: appointment on May 14 at 10:00 AM', NOW()),

(4, NULL, 'Your lab results are now available', NOW());

3. Create views for frequently accessed data Provide useful summaries or filtered data.  Join relevant two to three tables.  Reflect potential real-world use cases (e.g., popular medications, doctor–patient interaction summaries).

View 1: PatientAppointmentSummary

Purpose: To show a summary of patient appointments, including appointment details, patient names, and assigned healthcare providers. Useful for administrative overviews or patient portals.

Joins:

• Appointment

• Patient

• HealthcareProvider

SQL Code:

-- View 1: PatientAppointmentSummary

-- =========================

-- Provides joined information on patients and their appointments

-- =========================

DROP VIEW IF EXISTS PatientAppointmentSummary;

CREATE VIEW PatientAppointmentSummary AS

SELECT

    a.appointment_id,

    a.appointment_date,

    a.appointment_time,

    a.appointment_status,

    p.patient_id,

    p.patient_name AS patient_name,

    hp.provider_id,

    hp.healthcare_name AS provider_name,

    hp.specialty

FROM Appointment a

JOIN Patient p ON a.patient_id = p.patient_id

JOIN HealthcareProvider hp ON a.provider_id = hp.provider_id;

View 2: MedicationUsageSummary

Purpose: To display the most prescribed medications along with how many times each was recorded in MedicalRecord. This helps in reporting and trend analysis.

SQL Code:

-- View 2: MedicationUsageSummary

-- =========================

-- VIEW: MedicationUsageSummary

-- Provides Medical Usage Summary of Patient

-- =========================

DROP VIEW IF EXISTS MedicationUsageSummary;
CREATE VIEW MedicationUsageSummary AS
SELECT
    medication,
    COUNT(*) AS prescription_count
FROM MedicalRecord
GROUP BY medication
ORDER BY prescription_count DESC;

Real-World Use Cases:

• PatientAppointmentSummary: Helps support staff see daily schedules, understand patient-provider distribution, or track upcoming appointments.

• MedicationUsageSummary: Assists medical analysts or pharmacists in evaluating which medications are most frequently prescribed across the system.

4. Create report queries for the system (60 points )



                             Low Complexity Queries (1–4)

Query 1:  List all patients living in a specific city

Purpose:This query helps in identifying all patients who reside in Brooklyn, NY. It is useful for conducting targeted outreach, analyzing location-specific trends, or launching city-based healthcare campaigns. Simple filtering based on city. Useful for location-specific patient segmentation.

Expected Output:Returns a list of patients including their ID, name, email, phone number, and full address - filtered specifically to those whose address contains “Brooklyn, NY”.

SELECT patient_id, name, email, phone, address FROM Patient WHERE address LIKE '%Brooklyn, NY%';

Query 2: Total Number of Appointments

Purpose:This query provides a quick summary of how many appointments are stored in the system. It can be used to assess overall platform usage, track growth in appointment bookings over time, or inform resource allocation. Basic summary to track system usage or appointment volume.

Expected Output:Returns a single numeric value representing the total count of appointments recorded in the database.

SELECT COUNT(*) AS total_appointments FROM Appointment;

output:

Query 3: Healthcare Providers by Specialty

Purpose:This query organizes all healthcare providers by their specialty, making it easier for staff or patients to search for providers based on medical expertise. It aids in better navigation and assignment of cases to relevant professionals. Easy lookup of providers grouped by medical specialty.

Expected Output:A complete list of providers showing their ID, name, specialty, and availability, sorted in ascending order of specialty.

SELECT provider_id, name, specialty, availability FROM HealthcareProvider ORDER BY specialty ASC;

output:

Query 4: Notifications Sent per Patient

Purpose:This query measures how frequently the system communicates with each patient. It helps in evaluating the effectiveness of notification strategies and whether patients are receiving timely alerts and updates. Track communication effectiveness or usage.

Expected Output:Returns the patient ID along with the total number of notifications sent to them, grouped by each patient.

SELECT patient_id, COUNT(*) AS notifications_sent FROM Notification GROUP BY patient_id;

output:

Medium Complexity Queries (5–6)

Query 5: Detailed Appointment Schedule

Purpose:This query consolidates appointment data with patient and provider names, giving a complete and readable schedule. It’s ideal for administrative staff who need to view or manage appointments along with the involved parties. A detailed appointment schedule for daily operations or reporting.

Expected Output:Displays each appointment’s ID, date, time, status, and the full names of both the patient and the healthcare provider, ordered by appointment time.

SELECT
    a.appointment_id,
    a.appointment_date,
    a.appointment_time,
    a.appointment_status,
    p.patient_name AS patient_name,
    hp.healthcare_name AS provider_name
FROM Appointment a
JOIN Patient p ON a.patient_id = p.patient_id
JOIN HealthcareProvider hp ON a.provider_id = hp.provider_id
ORDER BY a.appointment_date, a.appointment_time;

output:

Query 6: Active Providers Based on Medical Records

Purpose:This query identifies providers who are heavily involved in patient care documentation. It helps in monitoring provider workload and engagement based on how many medical records they’ve authored. Identify active providers involved in patient documentation.

Expected Output:A list of healthcare providers who have authored more than one medical record, including their name, ID, and the total number of records they created.

SELECT
    hp.provider_id,
    hp.healthcare_name,
    COUNT(mr.record_id) AS records_created
FROM HealthcareProvider hp
JOIN MedicalRecord mr ON hp.provider_id = mr.provider_id
GROUP BY hp.provider_id, hp.healthcare_name
HAVING COUNT(mr.record_id) > 1;

High Complexity Query (7)

Query 7: Top 3 Most Prescribed Medications

Purpose:This query analyzes prescription trends by highlighting the top three most frequently prescribed medications. It also indicates how many unique patients and providers are associated with each, offering insights for procurement, policy decisions, or public health planning. Aggregated insights for pharmaceutical usage, cross-referenced by providers and patients. Could support procurement or health.

Expected Output:A list of the top 3 medications by total prescription count, including the number of distinct patients and providers linked to each medication.

SELECT
    mr.medication,
    COUNT(*) AS total_prescriptions,
    COUNT(DISTINCT mr.patient_id) AS unique_patients,
    COUNT(DISTINCT mr.provider_id) AS unique_providers
FROM MedicalRecord mr
GROUP BY mr.medication
ORDER BY total_prescriptions DESC
LIMIT 3;

output:

REFERENCE

1. Coronel, C. and Morris, S., 2019. Database Systems: Design, Implementation, & Management. 13th ed. Boston: Cengage Learning.

2. Rob, P. and Coronel, C., 2007. Database Systems: Design, Implementation, and Management. 8th ed. Boston: Thomson Course Technology.

3. MySQL, 2024. MySQL 8.0 Reference Manual. [online] Available at: https://dev.mysql.com/doc/ [Accessed 8 May 2025].

4. Elmasri, R. and Navathe, S.B., 2015. Fundamentals of Database Systems. 7th ed. Boston: Pearson.
